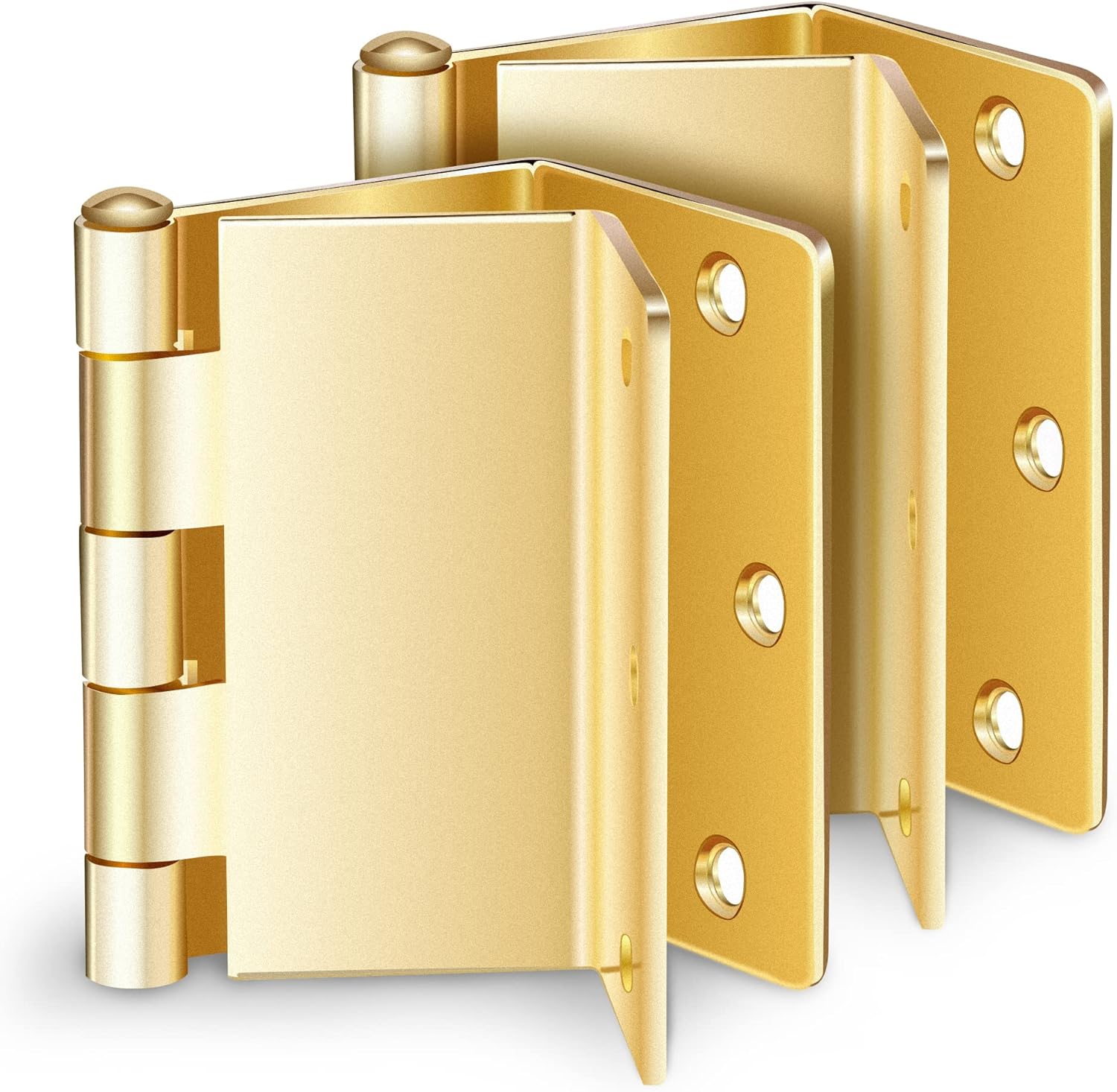

Offset Hinge - 90º Corner Angles

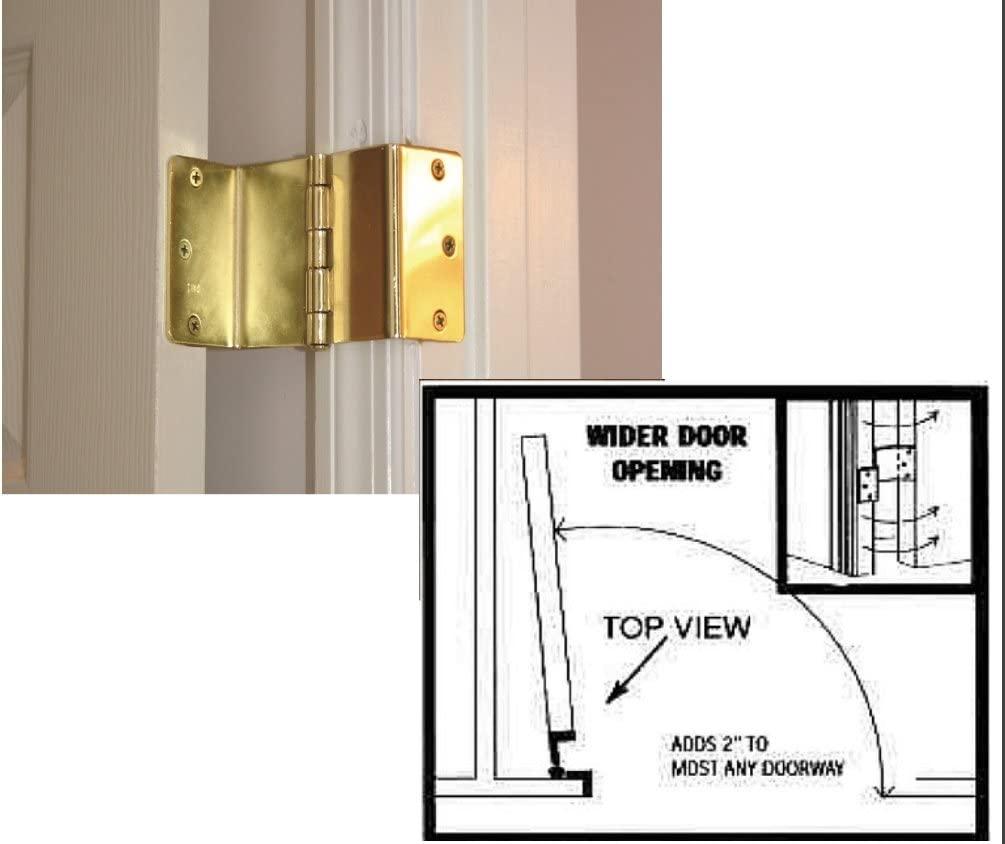

Using offset hinges is a great solution to expand doorway space by allowing the door to completely clear the opening when swung open. This will allow room for wheelchairs and walkers to fit through a doorway by adding 2 inches of space all while keeping your door.

Offset hinges can replace most door hinges and can be used throughout the home such as in bedrooms, bathrooms, or closets.

Having offset hinges will allow those with mobility devices to independently navigate the home and access rooms that would otherwise be avoided due to not being able to get through the doorway with a device.

AT LEAST three inches of CLEARANCE needed on the inside of your door between the wall and the edge of the door jam in order for the hinge to work properly.

Corner Shape Options: 90º or 5/8" rounded,

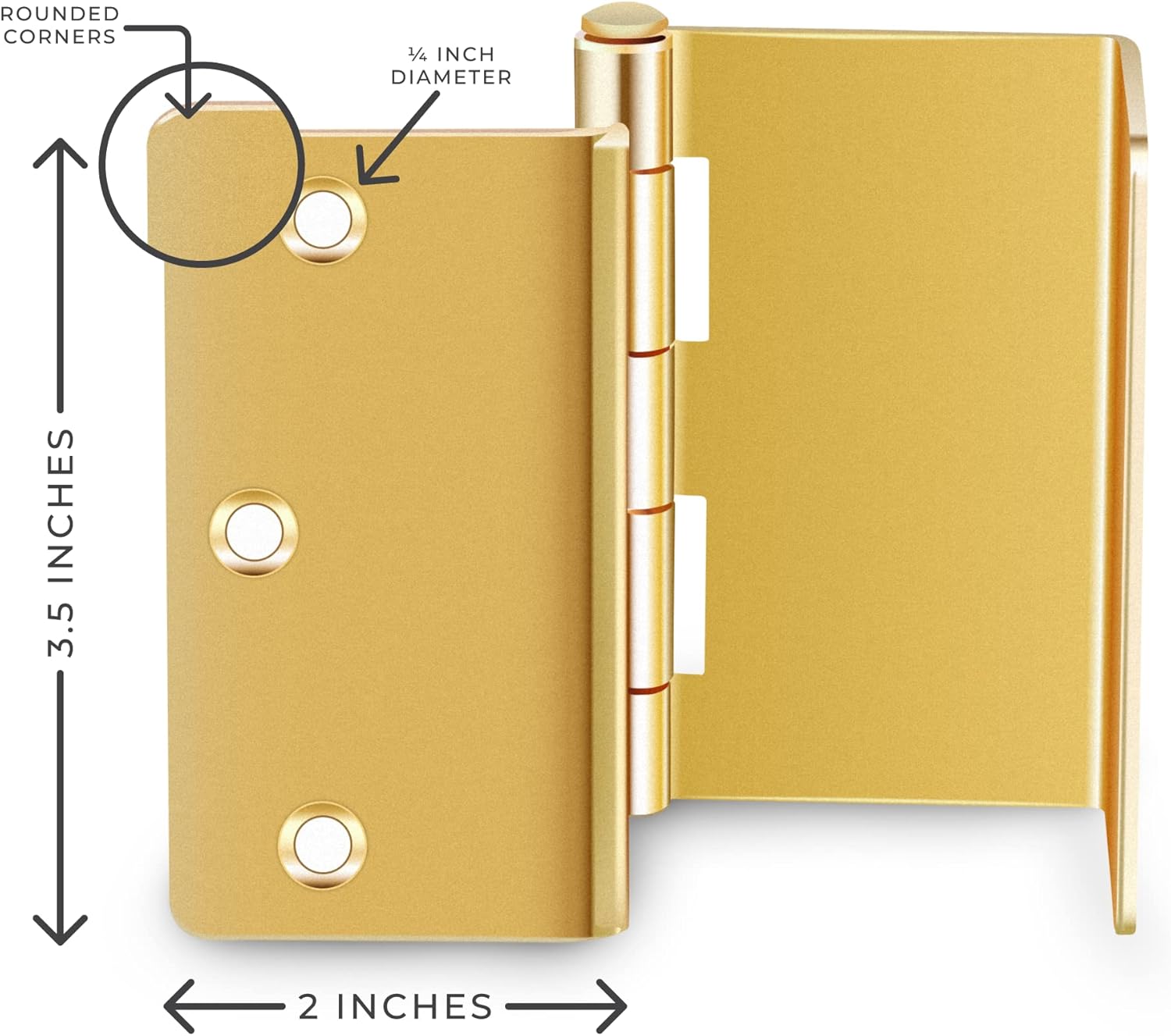

Dimension: 3.5 x 4.25in
Min door thickness: 1.375in
Max door thickness: 1.75in
Material: steel
Screws included

Get more help deciding with expert feedback in one of these 3 ways.

• Email us and an occupational therapist will respond with a clinically based answer.
• Call and talk to an occupational therapist @ 1-800-644-3612.
• Schedule a virtual home assessment with an occupational therapist so we can get our eyes on the scene and help even more!
